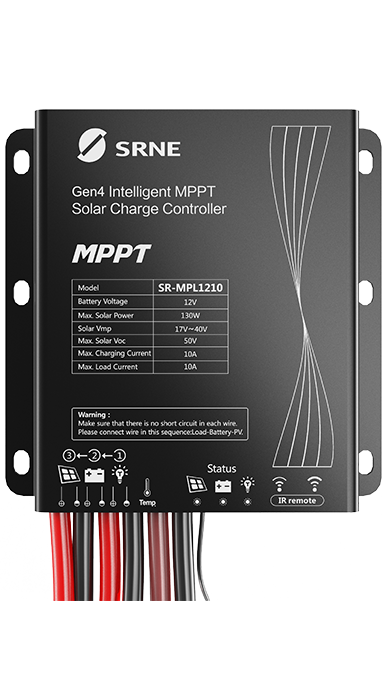

MPL Series

Solar Street Light Controller

12V/24V | 10-30A
MPL Series

MPPT

Using MovingTrack MPPT maximum power tracking technology, higher tracking efficiency and faster speed.

Intelligent

Both lead-acid battery and lithium battery are applicable, operating parameters can be set by remote control.

Communication

Extensible to IoT remote communication monitoring function.

Safety

Battery charge and discharge high and low temperature protection, with operating temperature settable;

Reliable

Multiple protections such as battery/PV reverse polarity protection,Load shortcircuit/overcircuit protection, etc;

Waterproof

Full aluminum housing, IP67 waterproof rating, applicable to a variety of harsh environments.

OVERVIEW

Model
MPL1210
System voltage
12V
Load Maximum current
10A
Maximum solar input voltage
≤50V
MPPT Tracking efficiency
≥99%
Charging conversion eff
85%-98%
IP rating
IP67
Weight
260g
Model
MPL1215
System voltage
12V
Load Maximum current
15A
Maximum solar input voltage
≤35V
MPPT Tracking efficiency
≥99%
Charging conversion eff
85%-98%
IP rating
IP67
Weight
400g
Model
MPL2410
System voltage
12V/24V
Load Maximum current
10A
Maximum solar input voltage
≤60V
MPPT Tracking efficiency
≥99%
Charging conversion eff
85%-98%
IP rating
IP67
Weight
400g
Model
MPL2415
System voltage
12V/24V
Load Maximum current
15A
Maximum solar input voltage
≤100V
MPPT Tracking efficiency
≥99%
Charging conversion eff
85%-98%
IP rating
IP67
Weight
510g
Model
MPL2420
System voltage
12V/24V
Load Maximum current
20A
Maximum solar input voltage
≤100V
MPPT Tracking efficiency
≥99%
Charging conversion eff
85%-98%
IP rating
IP67
Weight
770g
Model
MPL2430
System voltage
12V/24V
Load Maximum current
30A
Maximum solar input voltage
≤100V
MPPT Tracking efficiency
≥99%
Charging conversion eff
85%-98%
IP rating
IP67
Weight
1800g
Model
MPL2440
System voltage
12V/24V
Load Maximum current
30A
Maximum solar input voltage
≤100V
MPPT Tracking efficiency
≥99%
Charging conversion eff
85%-98%
IP rating
IP67
Weight
1800g
