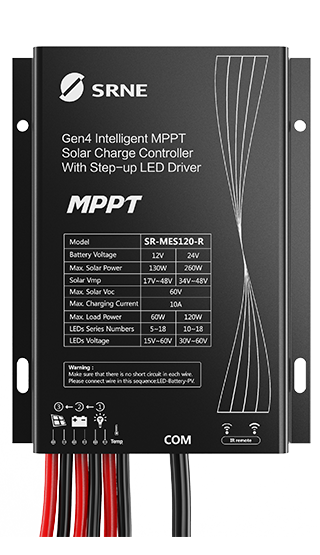

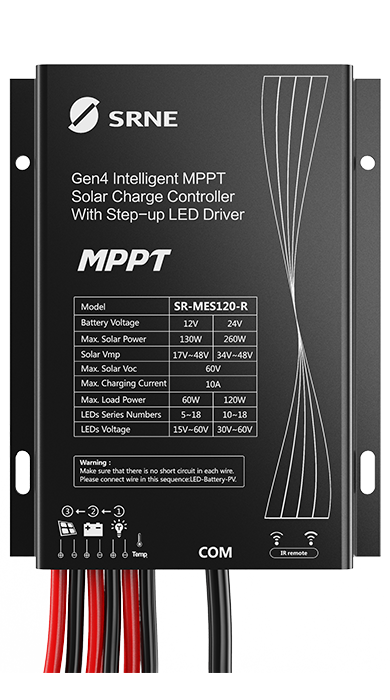

MES Series

Solar Street Light Controller

12V/24V | 10A-40A
MES Series

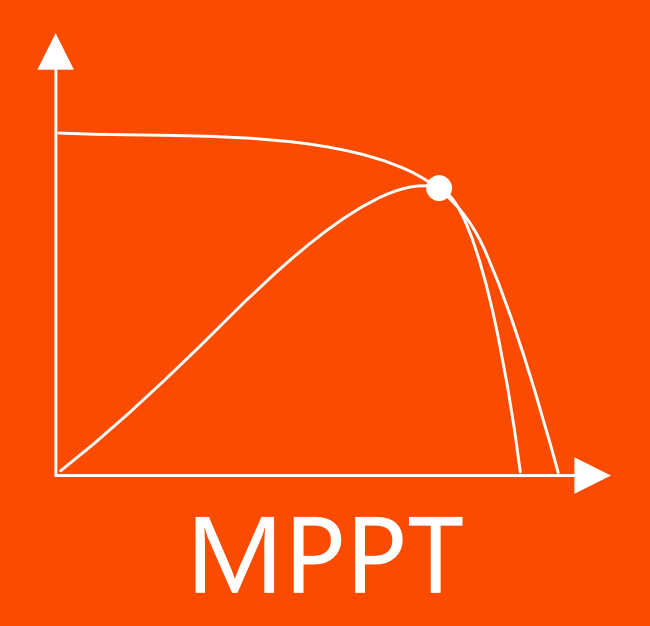

MPPT

Using MovingTrack MPPT maximum power tracking technology, higher tracking efficiency and faster speed.

Intelligent

A variety of intelligent power modes are available for choice, with load power adjustable automatically according.

Communication

Infrared wireless communication, allowing for setting/reading parameters, reading status, etc;

Safety

Multiple protections such as battery/PV reverse polarity protection, LED short-circuit/open-circuit/limited.

Reliable

Battery charge and discharge high and low temperature protection, with operating temperature settable.

Waterproof

Full aluminum housing, IP67 waterproof rating, applicable to a variety of harsh environments.

OVERVIEW

Model
MES60
System voltage
12V
Load voltage
15V~50V
Maximum charge current
10A
MPPT Tracking efficiency
>99%
IP rating
IP67
Weight
260g
Controller dimensions(mm)
80*82*22.6
Model
MES80
System voltage
12V
Load voltage
15V~40V
Maximum charge current
15A
MPPT Tracking efficiency
>99%
IP rating
IP67
Weight
400g
Controller dimensions(mm)
114*88.3*24.5
Model
MES120
System voltage
12V/24V
Load voltage
15V~60V
Maximum charge current
10A
MPPT Tracking efficiency
>99%
IP rating
IP67
Weight
400g
Controller dimensions(mm)
114*88.3*24.5
Model
MES160
System voltage
12V/24V
Load voltage
15V~60V
Maximum charge current
15A
MPPT Tracking efficiency
>99%
IP rating
IP67
Weight
510g
Controller dimensions(mm)
142*88.3*24.5
Model
MES200
System voltage
12V/24V
Load voltage
15V~60V
Maximum charge current
20A
MPPT Tracking efficiency
>99%
IP rating
IP67
Weight
770g
Controller dimensions(mm)
155*114.4*34
Model
MES260
System voltage
12V/24V
Load voltage
15V~75V
Maximum charge current
30A
MPPT Tracking efficiency
>99%
IP rating
IP67
Weight
1800g
Controller dimensions(mm)
200*122.5*56
Model
MES300
System voltage
12V/24V
Load voltage
15V~75V
Maximum charge current
40A
MPPT Tracking efficiency
>99%
IP rating
IP67
Weight
1800g
Controller dimensions(mm)
200*122.5*56
