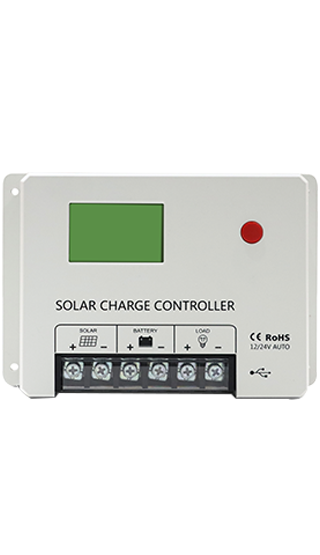

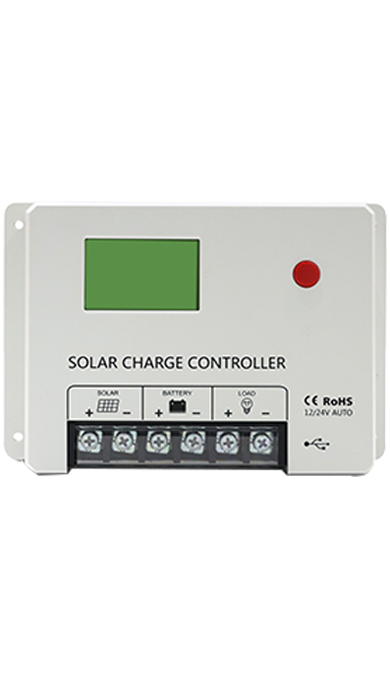

HC Series

Charge & Discharge Controller

PWM | 12/24/36/48V | 10-60A
HC Series

For off-grid application

Can be connected to both PV 、battery and load.Multiple load operating modes to meet diverse needs.

All-in-One

Supports multiple battery types.Highly integarted, helps you save space and wire.

User-Friendly

Easy to install and simple to use.With large LCD screen.

Reliable

Equipe with dual MoS anti-backflow circuit.Supports USB dual-port output.

Safety

Complete multi-stage PWM charging management.360 degrees of security from hardware to software.

Communication

Exclusive Li-ion battery BMS dual activation.Supports RS485 communication.

OVERVIEW

Model
HC2410-C
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Rated Charging Current
10A
Battery Voltage Range
9~32Vdc
Communication
RS485
Weight
130g (0.29lb)
Dimensions
120*75*34mm
Model
HC2420-C
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~32Vdc
Rated Charging Current
20A
Communication
RS485
Weight
180g (0.40lb)
Dimensions
134*85*36mm
Model
HC2430-C
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~32Vdc
Rated Charging Current
30A
Communication
RS485
Weight
290g (0.64lb)
Dimensions
159*100*39mm
Model
HC2440-C
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~32Vdc
Rated Charging Current
40A
Communication
RS485
Weight
322g (0.71lb)
Dimensions
159*100*39mm
Model
HC2460-C
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~32Vdc
Rated Charging Current
60A
Communication
RS485
Weight
660g (1.46lb)
Dimensions
193*131*55.2mm
Model
HC4840-C
Max.Voltage of Open Circuit
100Vdc
Rated Battery Voltage
12/24/36/48Vdc
Battery Voltage Range
9~64Vdc
Rated Charging Current
40A
Communication
RS485
Weight
660g (1.46lb)
Dimensions
193*131*55.2mm
