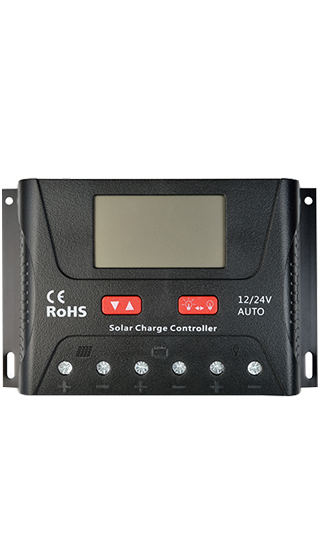

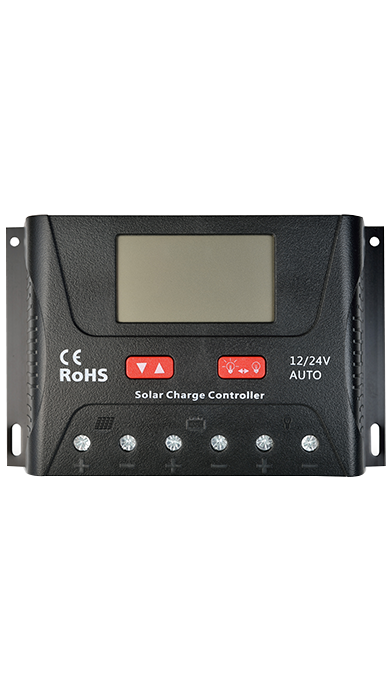

HP Series

Charge & Discharge Controller

PWM | 12/24/36/48V | 10-60A
HP Series

For off-grid application

Can be connected to both PV 、battery and load.Multiple load operating modes to meet diverse needs.

All-in-One

Supports multiple battery types.Highly integarted, helps you save space and wire.

User-Friendly

Easy to install and simple to use.With large LCD screen.

Reliable

With industrial grade design.TvS lighting protection is adopted.

Safety

Complete multi-stage PWM charging management.360 degrees of security from hardware to software.

Intelligent

Supports power-down saving functions.Automatic battery voltage identifcation.

OVERVIEW

Model
HP2410
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~34Vdc
Rated Charging Current
10A
COMMUNICATION
Bluetooth、TTL
Weight
100g (0.22lb)
Dimensions
103*71*36mm
Model
HP2420
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~34Vdc
Rated Charging Current
20A
COMMUNICATION
Bluetooth、TTL
Weight
160g (0.35lb)
Dimensions
130*75*38mm
Model
HP2430
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~34Vdc
Rated Charging Current
30A
COMMUNICATION
Bluetooth、TTL
Weight
390g (0.86lb)
Dimensions
164.0*103.5*47.0mm
Model
HP2440
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~34Vdc
Rated Charging Current
40A
COMMUNICATION
Bluetooth、TTL
Weight
390g (0.86lb)
Dimensions
164.0*103.5*47.0mm
Model
HP2450
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~34Vdc
Rated Charging Current
50A
COMMUNICATION
Bluetooth、TTL
Weight
650g (1.43lb)
Dimensions
189.27*127.2*54.0mm
Model
HP2460
Max.Voltage of Open Circuit
55Vdc
Rated Battery Voltage
12/24Vdc
Battery Voltage Range
9~34Vdc
Rated Charging Current
60A
COMMUNICATION
Bluetooth、TTL
Weight
650g (1.43lb)
Dimensions
189.27*127.2*54.0mm
Model
HP4830
Max.Voltage of Open Circuit
110Vdc
Rated Battery Voltage
12/24/36/48Vdc
Battery Voltage Range
9~68Vdc
Rated Charging Current
30A
COMMUNICATION
Bluetooth、TTL
Weight
650g (1.43lb)
Dimensions
189.27*127.2*54.0mm
Model
HP4840
Max.Voltage of Open Circuit
110Vdc
Rated Battery Voltage
12/24/36/48Vdc
Battery Voltage Range
9~68Vdc
Rated Charging Current
40A
COMMUNICATION
Bluetooth、TTL
Weight
650g (1.43lb)
Dimensions
189.27*127.2*54.0mm
