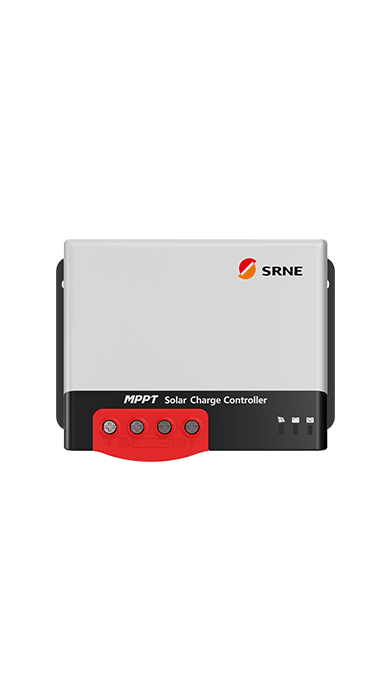

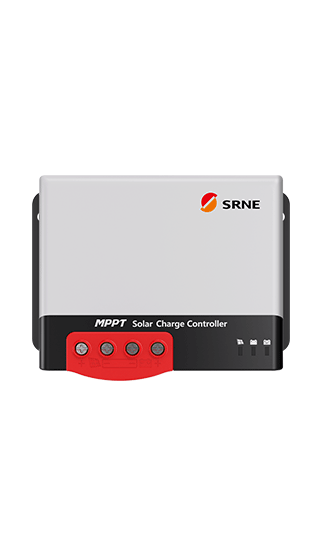

MC Series

Charge Only Controller

MPPT | 12/24V | 20-50A
MC Series 20-50A

MPPT

Compared with the traditional MPPT tracking technology, it boasts faster response speed and higher tracking efficiency.

All-in-One

Supports multiple battery types.Highly integarted, helps you save space and wire.

User-Friendly

Easy to install and simple to use.Natural cooling, absolutely quiet.

Efficient

MPPT with up to 99.9% effciency.Support solar panel 2 in series/more in parall.

Intelligent

Supports TTL, CAN (RV-C) communication.Supports Bluetooth with mobile APP.

Safety

Complete charge protection mechanism.High quality components for stable operation.

OVERVIEW

Model
MC2420N10
Max.Voltage of Open Circuit
100Vdc
Rated Battery Voltage
12/24Vdc
Rated Charging Current
20A
MPPT Tracking Efficiency
>99%
Communication
TTL
Weight
0.65kg(1.43lb)
Dimension
150*105.6*61.5mm
Model
MC2430N10
Max.Voltage of Open Circuit
100Vdc
Rated Battery Voltage
12/24Vdc
Rated Charging Current
30A
MPPT Tracking Efficiency
>99%
Communication
TTL
Weight
0.83kg (1.83lb)
Dimension
150*105.6*67.5mm
Model
MC2440N10
Max.Voltage of Open Circuit
100Vdc
Rated Battery Voltage
12/24Vdc
Rated Charging Current
40A
MPPT Tracking Efficiency
>99%
Communication
TTL
Weight
1.04kg (2.3lb)
Dimension
183*127*65.5mm
Model
MC2450N10
Max.Voltage of Open Circuit
100Vdc
Rated Battery Voltage
12/24Vdc
Rated Charging Current
50A
MPPT Tracking Efficiency
>99%
Communication
TTL
Weight
1.335kg (2.94lb)
Dimension
183*127*69.5mm
