EOV Series

Solar Storage System

5.12-20.48kWh | Single Phase | 110/220 Vac
EOV Series 5.12-20.48kWh

Remote operation

Equipped with WIFI and Bluetooth communication, it supports Tuya cloud platform and can view battery information remotely.

Waterproof protection

IP65 waterproof rating, can be used in harsh environment.

Convenient installation

Support USB interface, can communicate directly with computer, easy for parameter change and troubleshooting.

USB interface

Support USB interface, can communicate directly with computer, easy for parameter change and troubleshooting.

Electricity Support

Support up to 6 batteries in parallel, and can form a maximum power system of 60kwh.

Communication

Support various brands of inverter communication protocols.

OVERVIEW

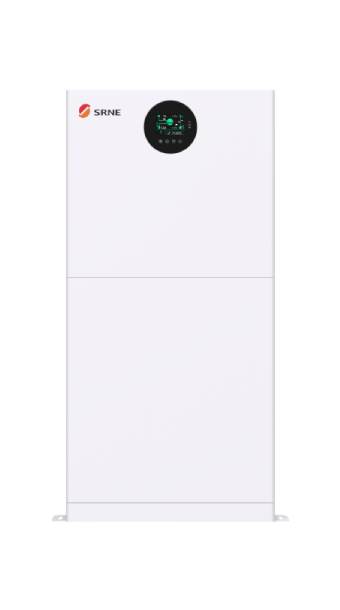

ASF off grid inverter three phase (2).png
INVERTER MODEL
SR-EOV05C-110
Rated Output Power
5,000W
Load Capacity of Motor
4HP
Rated Output Voltage
120Vac (single phase)
Max. Output Power
5,500W
Max. Solar Charging Current
100A
Solar Charge Type
MPPT
Max. Parallel Capacity
2 units (up to 10kW)
INVERTER MODEL
SR-EOV05C-220
Rated Output Power
5,000W
Max. Peak Power
10,000VA
Load Capacity of Motor
4HP
Rated Frequency
50Hz/60Hz
Max. Parallel Capacity
2 units (up to 10kW)
Rated Output Voltage
230Vac (single phase)
Max. Output Power
5,500W
BATTERY MODEL
SR-EOV05B
Battery Power
5.12kWh
Rated Voltage
51.2V
Rated Capacity
100Ah
Standard charge current
50A
Max. charge current
100A
Battery Type
LFP
Max. Parallel Capacity
4 units (up to 20.48kWh)
