How to choose right wire and circuit breaker for your solar inverter

1. Wires size


The selection of appropriate electrical wires is crucial for electrical safety. Properly chosen wires ensure efficient power transmission, minimize energy loss, and reduce the risk of electrical accidents such as fires, short circuits, and electrocution. Selecting the right gauge, insulation material, and wire type is essential for maintaining electrical system integrity and preventing damage to appliances and equipment. Inadequate wiring may lead to overloading, overheating, and potential hazards. Always adhere to local electrical codes and consult a professional electrician for guidance in choosing the right electrical wires.


When selecting the size of the connecting wire, it is important to consider the following factors:


· Circuit voltage

· Circuit current

· One-way distance

· Conductor material (copper or aluminum)


Based on the power and voltage (which can be found in the inverter's label), the current of the circuit can be calculated.


Example:


Power / Voltage = Current


Assuming the output voltage of the current inverter is 230V and its rated power is 5kW, then the circuit current can be       calculated as 230V/5kW=46A. We can choose the wire according to 46A.


Then you need to estimate the length of the circuit. The longer the circuit, the greater the voltage drop caused.Copper has better conductivity than aluminum, and under the same conditions, copper wires have a smaller diameter. Please choose according to the actual situation.


1.1 Cable size calculator


Here is a free cable size calculator tool recommended for everyone:


DC Wire Size Calculator

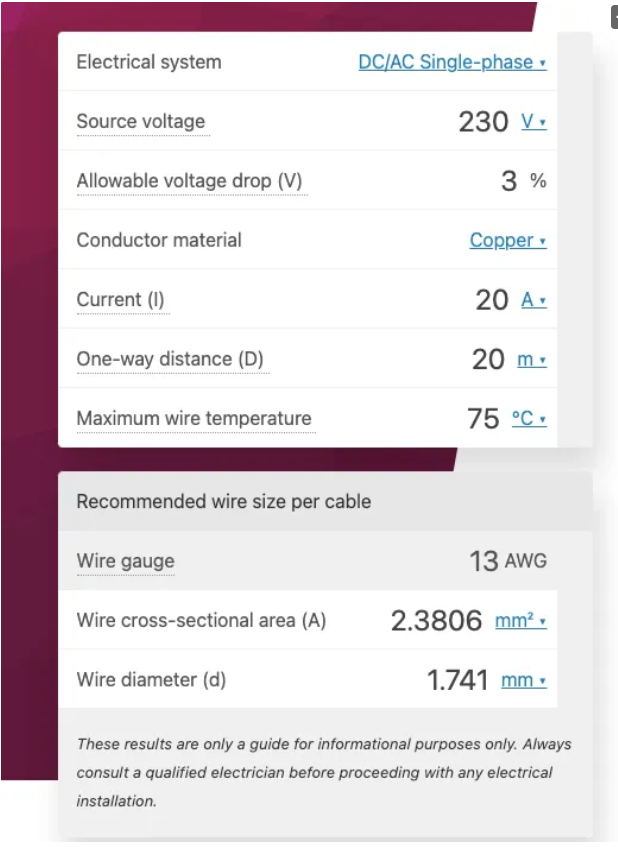

Enter the parameters above and the suggested wire diameter size will be provided below, which is very convenient. It is recommended for everyone to use.




You can choose the wire gauge based on the calculator's calculation result. Based on the example above, we should choose a 13 AWG specification or a wire with a cross-sectional area of at least 2.38mm².


Attention, please do not choose connection wires with too small specifications in order to save costs. This is very dangerous. When the wire diameter is too small and the current is too large, a large amount of heat will be generated, which poses a fire hazard.

2. Circuit breaker size


Circuit breakers play a vital role in electrical safety by automatically interrupting current flow when a fault or overload is detected. They protect electrical systems, appliances, and equipment from potential damage and reduce the risk of electrical fires, short circuits, and electrocution. Choosing the right circuit breaker for your electrical system is essential for maintaining its integrity and ensuring safety. Proper selection involves considering factors such as current ratings, voltage ratings, and the breaker's type. Always adhere to local electrical codes and consult a professional electrician for guidance in selecting the appropriate circuit breaker.




There are several considerations when choosing a circuit breaker or other protective device:

· Circuit current

· Poles


2.1 Circuit current


Assuming the output voltage of the current inverter is 230V and its rated power is 5kW, then the circuit current can be calculated as 230V/5kW=46A. We can choose the wire according to 46A.


Note: Power / Voltage = Current


2.2 Poles


Common types of circuit breakers in the market include 1-pole, 2-pole, 3-pole, and 4-pole.


Attention:

For small power single-phase loads such as desk lamps and fans, a 1-pole circuit breaker can be chosen.

For high power single-phase loads such as air conditioners and refrigerators, it is recommended to choose a 2-pole circuit breaker.

For three-phase loads, please choose a 3-pole or 4-pole circuit breaker (consult an electrician and comply with local electrical regulations).


SRNE


SRNE is a leading provider of advanced solar energy solutions, specializing in high-quality inverters and essential electrical components. With a commitment to innovation and safety, SRNE ensures that every product meets stringent standards to maximize energy efficiency and reduce environmental impact. Our products are designed for both residential and commercial solar installations, offering reliable, cost-effective solutions for sustainable energy generation. We focus on enhancing the overall solar system performance by providing detailed guidance on selecting appropriate wiring and circuit protection systems to ensure electrical safety and efficiency.


FAQs

What factors should I consider when choosing the right wire for my solar inverter?

You should consider circuit voltage, current, wire length, and conductor material (copper or aluminum). Ensure the wire gauge is appropriate for your system’s power rating to prevent overheating or fire hazards.


How do I calculate the correct wire size for my solar inverter?

Use the formula: Power (W) / Voltage (V) = Current (A). Once you know the current, you can select a wire size that matches your system’s needs. Tools like a cable size calculator can help streamline this process.


Why is selecting the right circuit breaker important for my solar system?

Circuit breakers protect your system by interrupting the current flow in case of overloads or faults. This reduces the risk of electrical fires, short circuits, and equipment damage.


How do I choose the correct circuit breaker size?

Consider the circuit current, which is determined by your inverter’s power and output voltage. Also, choose a breaker with the appropriate number of poles (1-pole, 2-pole, or 3-pole) depending on your system’s requirements.


Can I use a smaller wire gauge to save costs?

No. Using a wire with too small a gauge for your system's current can lead to overheating and increased fire risk. Always use the recommended wire size based on your inverter’s specifications.


How can I ensure my solar installation is safe and efficient?

Follow local electrical codes, select appropriate wiring and circuit breakers, and consult a professional electrician for optimal safety and performance in your solar setup.
