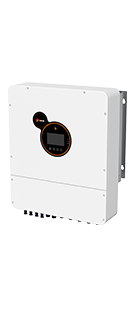

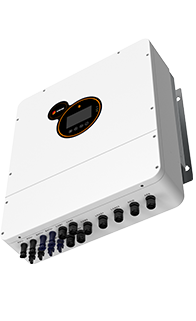

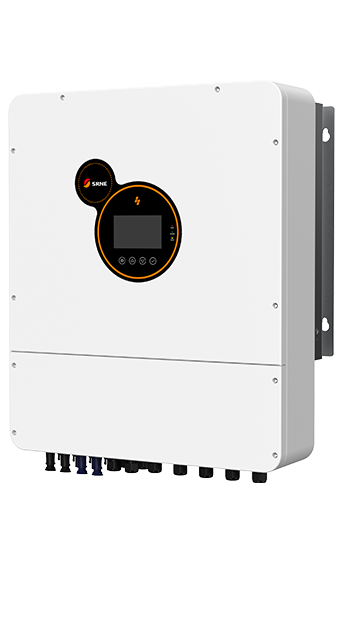

HES H3 / HESP H3 Series

Hybrid Inverters

8-12KW | Three Phase | 2 MPPTs
HES H3 / HESP H3 Series 8-12KW

Efficient

Advanced MPPT technologty with up to 99.9% efficiency.Up to 1000V PV input voltage, ideal for high power.

Waterproof protection

Outputs high quality pure sine wave AC power.IP65 protection degree for outside installation

User-friendly

Industrial design with a modern aesthetic look.Wall-mounted installation saves home space.

Safety

360 degrees of security from hardware to software.On-grid certifcation available.

All-in-one

The 380V three-phase system is effcient, reliable and ideal for large equipment, providing energy and cost savings

Intelligent

Exclusive Li-ion battery BMS dual activation.Time-slot function to save cost with peak-valley.

OVERVIEW

Model
HES80SH3
Rated Output Power
8000W
Max. Output Power
8,800VA
Max. grid Output Current
12.7A
AC voltage range
380V
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
2
Max. DC Input Power
6000W+6000W
Model
HES100SH3
Rated Output Power
10000W
Max. Output Power
11,000VA
Max. grid Output Current
15.9A
AC voltage range
380V
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
2
Max. DC Input Power
7500W+7500W
Model
HES120SH3
Rated Output Power
12000W
Max.Peak Power
13,200VA
Max. grid Output Current
19.1A
Load Capacity of Motors
6HP
AC voltage range
380V
Num. of MPPT Trackers
2
Max. DC Input Power
9000W+9000W
Model
HESP4880SH3
Rated Output Power
8,000W
Max.Peak Power
2 times rated power
Load Capacity of Motors
5HP
Max. Apparent Power
8,800VA
Max. Hybrid Charging Current
180A
Bypass Overload Current
23.2A
Protection Degree
IP65
Model
HESP48100SH3
Rated Output Power
10000W
Max.Peak Power
2 times rated power
Load Capacity of Motors
6HP
Max. Apparent Power
10,000VA
Rated Output Current
14.5A
Max. Hybrid Charging Current
220A
Max. PV Array Power
7500W+7500W
Model
HESP48120SH3
Rated Output Power
12000W
Max.Peak Power
2 times rated power
Max. Apparent Power
12,000VA
Load Capacity of Motors
6HP
Max. Hybrid Charging Current
260A
Num. of MPPT Trackers
2
Max. PV Array Power
9000W+9000W
